CONTROLS
V-BRAIN 600
The SACO Direct View V-BRAIN 600 WET is an innovation in both power and data delivery. Designed to control SACO Direct View products, the modular outdoor system provides flexibility and reliability for outdoor rated projects.
Tethered power and data allows the line of SACO fixtures to take full advantage of the latest solid state technology and efficient heat dissipation, shedding weight and bulk to leave only a slim, powerful fixture in a modular arrangement that easily integrates with any project. Applying the same concepts, the SACO Direct View V-BRAIN 600 WET is designed like the fixtures it powers; modular, stackable, slim and weatherproof.
SACO V-BRAIN 600
FEATURES
CONSTRUCTION
- Extruded 6063-T5 aluminum housing (0.118”/3mm)
- Machined high-grade 6061-T6 aluminum endcaps (0.125”/3mm)
- Stainless steel hardware
MOUNTING
- Die-formed laser cut cold rolled steel mounting brackets (0.125″/3mm)

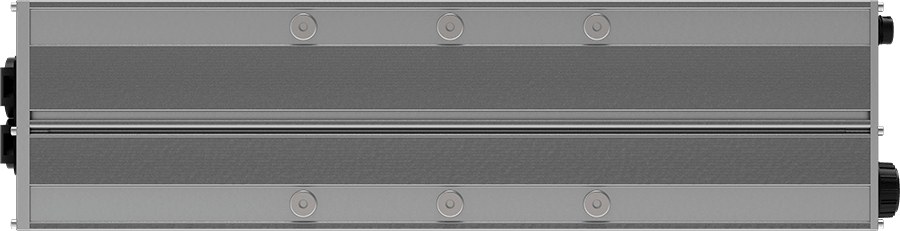

- Extruded channels allow variety of mounting options
SURFACE FINISH
- Durable polyester powder coated endcaps
- Black anodized aluminum housing
WEIGHT
- 7.2lbs (3.3kg) (mounting brackets not included)
HEAT CONTROL
- Use of entire housing surface area for ideal passive convection cooling
OPERATING TEMP
- -40°F to 122°F (-40°C to 50°C)
INPUT VOLTAGE
- Various mains voltage options available
- 100-240VAC Typical (50/60Hz)
- 180-305VAC (50/60Hz)
OUTPUT VOLTAGE
- 2 x 48VDC Typical
OUTPUT CURRENT
- 4.9A Maximum per output
OUTPUT POWER
- 250W Maximum per output
POWER INPUT

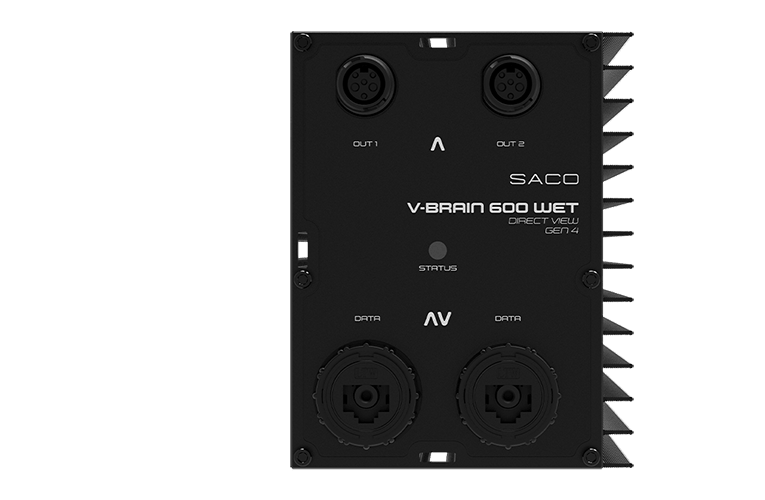

- Panelmount IP65 (when mated), twist-lock, hot disconnect
- Inlet-outlet combination for daisy-chaining
DATA INPUT
- Standard RJ45 receptacle, IP65 (when mated)
FIXTURE OUTPUT
- 2 x 6-Conductor, IP65 (when mated), over-molded quick-connect connectors
- Refer to basic wiring guide for general lead cables to daisy chain ratios
- Consult SACO for optimal system configuration on your project)
DATA OUTPUT
- Standard RJ45 receptacle IP65 (when mated), for serial V-BRAIN data connections
VIDEO PROCESSORS
- Multiple SACO video processing options are available
- See accessories guide for options.
CERTIFICATION
- IP65 (as per IEC 60529-1:2013, when receptacles are capped or mated)
- NRTL (as per UL 62368-1:2014, CAN/CSA-C22 No. 62368-1:2014)
- CE (as per EN 62368-1:2014/A11 :2017)
WARRANTY
- 5 years
ORIGIN
- Designed and made in North America
DEEP COLOUR
SACO’s proprietary V-STREAM high-speed, high-resolution video pixel control. Up to 16-bit data sampling for silky smooth dimming, with up to 65,536 shades per color.
BUILT TO LAST
Sturdy construction built for outdoor conditions.
REMOTE CONTROL
Tethered power and data allows for compact fixtures and discreet integration.
MODULAR
Expand the system by combining series of V-BRAINS and daisy chaining fixtures to suit. No tools required , self-addressing quick connectivity.
Compact design with multiple mounting channels for the most demanding applications.
HEAT MANAGEMENT

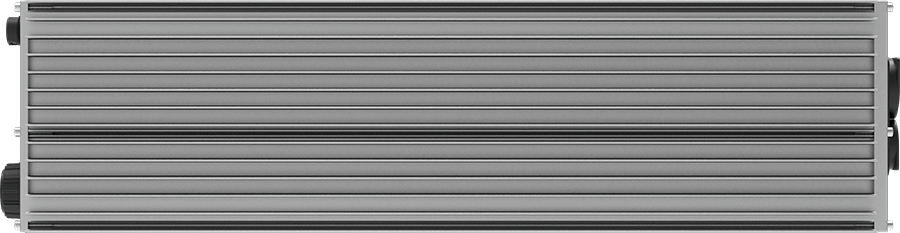

Integral aluminum heatsink, optimally designed for passive cooling.

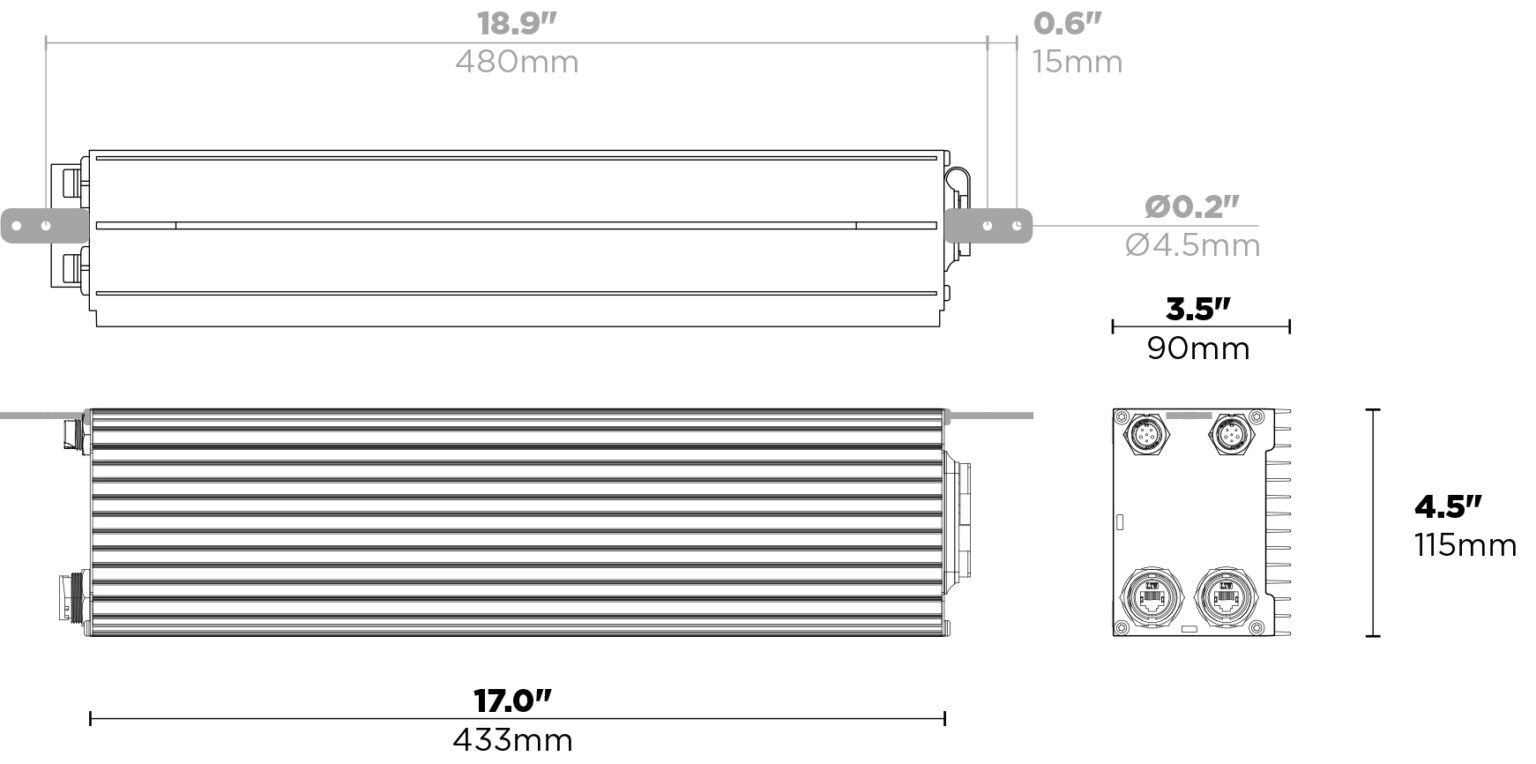

DIMENSIONS
CHOOSE YOUR FINISH

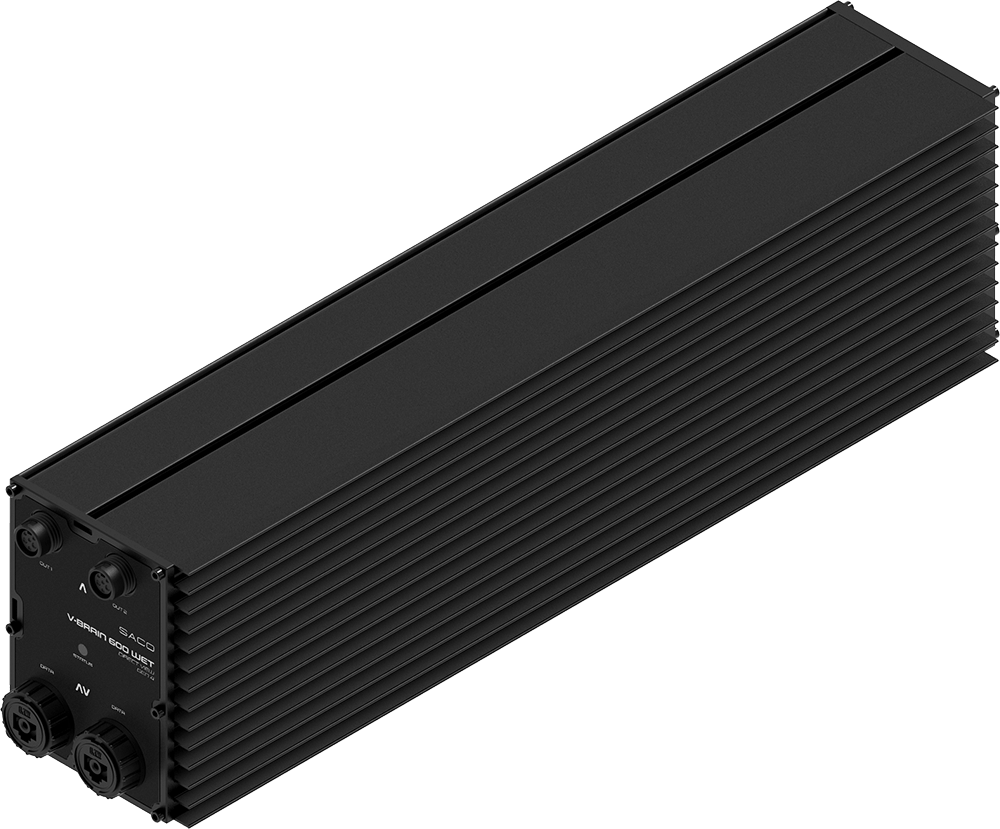

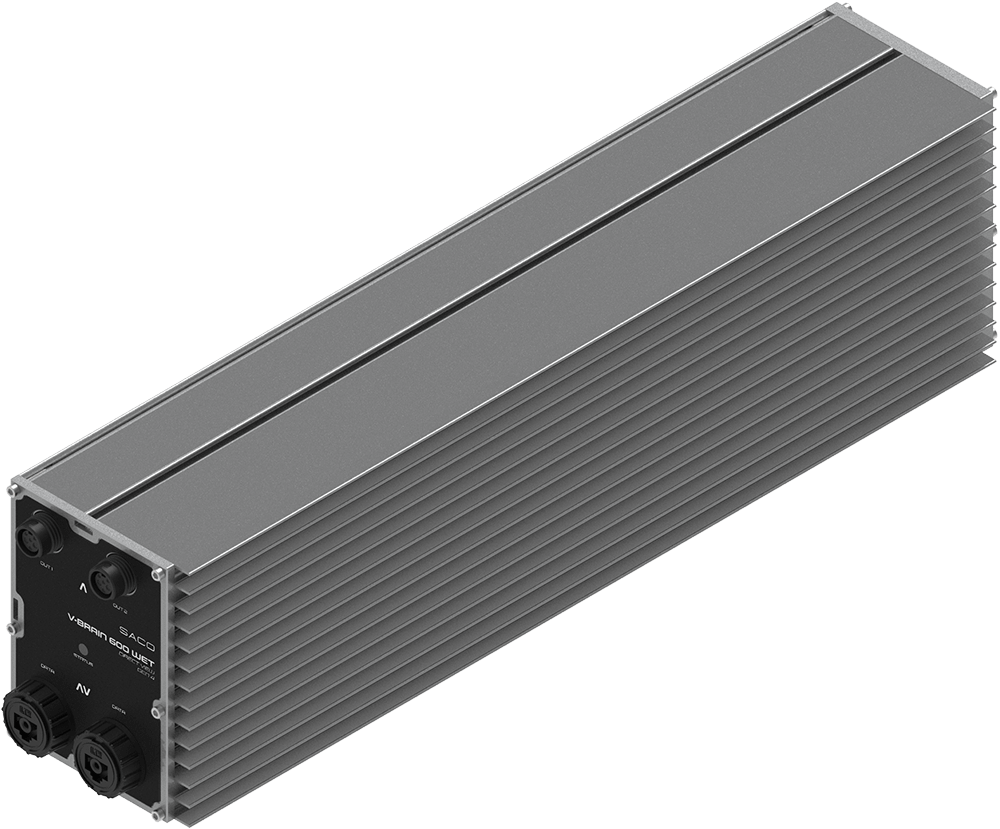

BLACK MATTE OR CLEAR MATTE ANODIZED
