SPOT SERIES

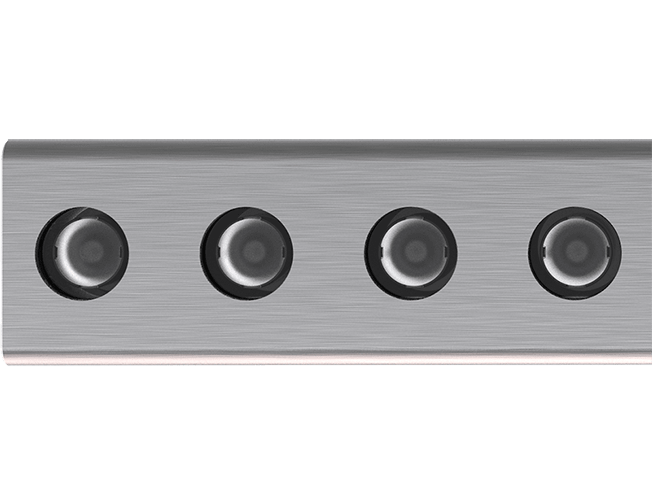

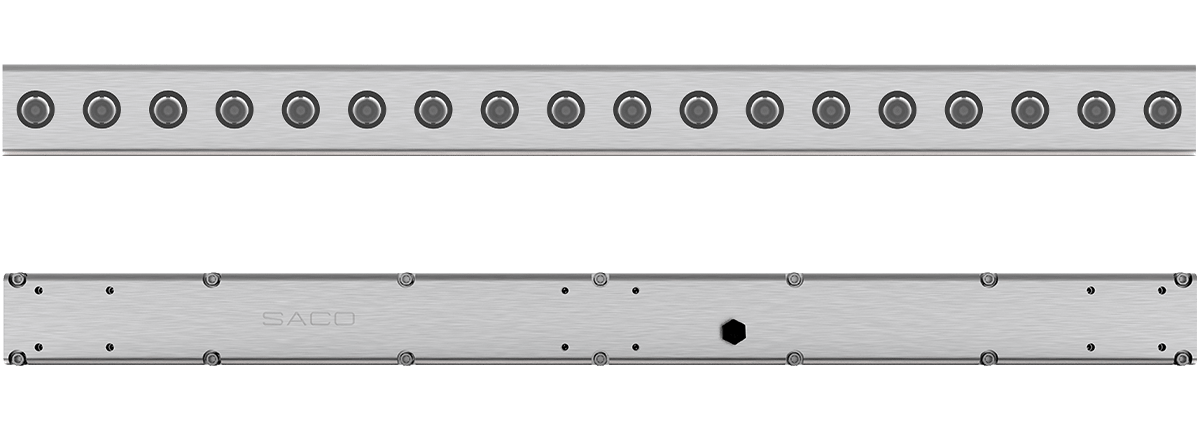

SACO DELTA-2
The SACO DELTA-2 is a slim and stylish, wall-grazing or wall-washing fixture using high-performance LEDs to deliver intense and precise lighting, in virtually any color. The DELTA-2 is highly adjustable and is great end-to-end, stacked, or positioned around complex structures.
DELTA-2 comes in narrow, medium, wide, and a variety of oval optic options making this a versatile lighting solution for most projects.
SACO DELTA-2
FEATURES
CONSTRUCTION
- Machined high grade 6061-T6 aluminum
- Machined scratch resistant clear polycarbonate face (0.2″, 4.5mm thickness)
- Sturdy stainless steel hardware
- High-pressure silicone rubber seal (temp range -60°F to 400°F, -50°C to 200°C)
MOUNTING
- Standard 304 stainless steel aimable mounting bracket (0.1″, 2.6mm thickness)
- 180° tilt, 90° pan around central pivot
- Micro-adjustable for perfect aiming
- Locking bracket accommodates 1/4″ (6mm) mechanical screws
SURFACE FINISH
- Standard brushed anodized finish
- Custom painted colors also available
WEIGHT
- 3.0lb (1.4kg), with standard cable + mounting bracket
HEAT CONTROL
- Use of entire fixture’s surface area for ideal heat dissipation
- No fins, no dirt buildup
SURFACE FINISH
- Anodized for better emissivity
OPERATING TEMP
- -40°F to 185°F (-40°C to 85°C)
INPUT VOLTAGE
- 24VDC (CLASS 2)
POWER
- 23W Maximum
V-BRAIN LIMIT
- 4 (Connect maximum 1 per V-Brain 100 output. Please refer to specification guide)
CABLE
- Standard 4′ (1.2m) cable with quick connector (Q804), or optional 10′ (3m) pigtail cable for fixed color applications (P210)
CONTROL INPUT
- SACO Video (Up to 16 bit resolution)
- DMX512 (8 bit resolution)
- DMX512 with RDM (Remote Device Management) (8 bit)
- On/0ff without control signal for fixed colors
COLOR SERIES
- ABC: patented Adaptive Brightness Control, for more vivid single colors
- Red, blue, green discrete LEDs for individual color control
- Custom colors available
LUMEN OUTPUT
- From 700 to over 1500 delivered lumens (RGB full-on), depending on optics
PERFORMANCE
- From 30 to over 75lm/W, depending on optics
REFRACTORS
- Injection molded PMMA total internal reflection collimators (TIR)
- Variety of axial and transverse beam angles, from circular to oval light spreads
- Factory installed for enhanced optical precision
EXTENSION CABLES
- 10′ (3m) EXT10 and 20′ (6m) EXT20 fixture extension cables may be used to
lengthen standard cable to a maximum of 60′ (18m) - IP67 quick connectors for easy connections to V-BRAIN
MOUNTING
- Multiple mounting and joining bracket options available
- See accessories guide for options
OPTICAL ACCESSORIES
- Multiple optical accessories are available
- See accessories guide for options
CONTROLLERS
- Multiple SACO video and DMX512 control options are available
- See accessories guide for options
MORE
- Please refer to accessories guide for more information
CERTIFICATION
- ETL listed as per UL 2108, CSA C22.2 Nº 250.0
- CE
- IP 66, suitable for wet locations
- Roadway and Area Lighting Equipment Luminaire Vibration as per ANSI C136.31
WARRANTY
- 5 years
ORIGIN
- Designed and made in North America
OPTICAL OPTIONS
10°
30°
50°
15° x 45°
35° x 55°
DIMENSIONS
AVAILABLE IN RGB, VIDEO & WHITE LIGHT
RGB
VIDEO
RED
GREEN
BLUE
AMBER
2700K
3000K
3500K
4000K
5700K
ADAPTIVE WHITE
VIDEO LIGHTING
SHADES OF WHITE
- RGBW recipe can produce finer hues of whites, extending the possibilities
- Warm, neutral and cool white light emitters also available for fixed whites
- Warm, neutral and cool white light emitters also available for fixed whites
BRIGHT LIGHTS
SACO’s ABC proprietary protocol maximizes output for the brightest colors across the spectrum
HIGH RESOLUTION
- MICROMAPPING enables fixtures to display as single or multiple pixels
- SACO’s proprietary V-STREAM high-speed, high resolution video pixel control
- RGB LED configuration driven in video can produce 65,536 shades per color
- SACO’s proprietary V-STREAM high-speed, high resolution video pixel control
- RGB LED configuration driven in video can produce 65,536 shades per color
COMPACT SIZE
- Small sized / high flux LEDs enabling more condensed LED arrays and clusters
- Ultra-compact design and remote V-BRAIN power allows for low-profile installation and discreet integration
- Ultra-compact design and remote V-BRAIN power allows for low-profile installation and discreet integration
WHICH FINISH WILL YOU CHOOSE?
THE SACO DELTA-2 IS AVAILABLE IN…

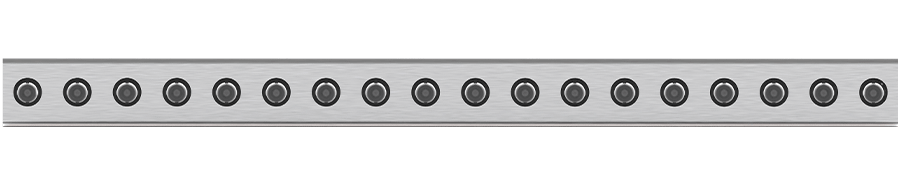

POLISHED ALUMINIUM

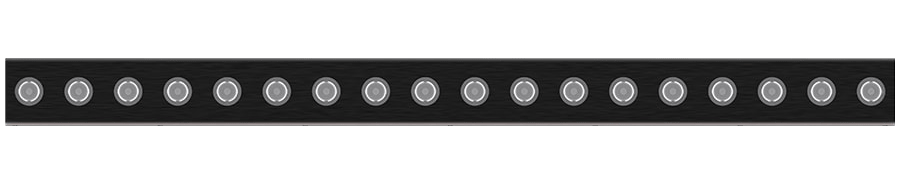

MATTE BLACK

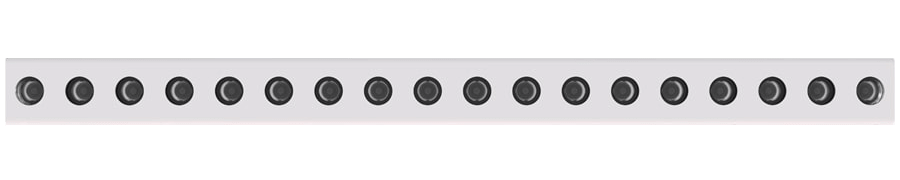

MATTE WHITE

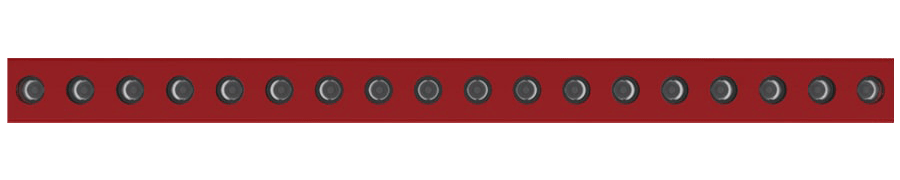

CUSTOM COLOR
MODULAR DESIGN
CREATE DIFFERENT LIGHTING STYLES WITH MOUNTING AND JOINING COMBINATIONS
DEFINE LIGHTING STYLES WITH OPTICAL ACCESSORIES
AWARD WINNING
SACO’s ALFA was crowned best architectural luminaire at London’s Lighting Design Awards 2016. The panel of judges labelled the fixture as “An exceptional piece of engineering that stood out miles from the rest”.
Get in touch now to find out how SACO can provide the best lighting solution for any architectural project.
