LED VIDEO SCREEN
C-THRU C28
SACO C-THRU is an innovative LED video screen system using state-of-the-art electronics in a light weight and open frame design. This see- through media system can be used in front of a performer or staging elements, or even combined together to fully benefit from the latest in live media layering techniques.
Based on SACO’s proprietary V-Stream communication protocol, the C-THRU is fully compatible with SACO’s S-LINE media touring solutions and SACO’s line of video processors and video-enabled light fixtures.
C-THRU C28
FEATURES
CONSTRUCTION
- Machined high grade 6061-T6 aluminum mounting frame and header
- Injected polymer LED carriers
- Sturdy black oxide coated steel hardware
- Black silicone electronics potting (temp range -49°F to 392°F, -45°C to 200°C) Front and rear access for serviceability
MOUNTING
- Connect 3 modules to form a complete sheet section
- Up to 8 sheet sections be suspended and powered from one Header
DIMENSIONS
- Module section: 70.6″ wide x 17.6″ high (1792mm x 446mm)

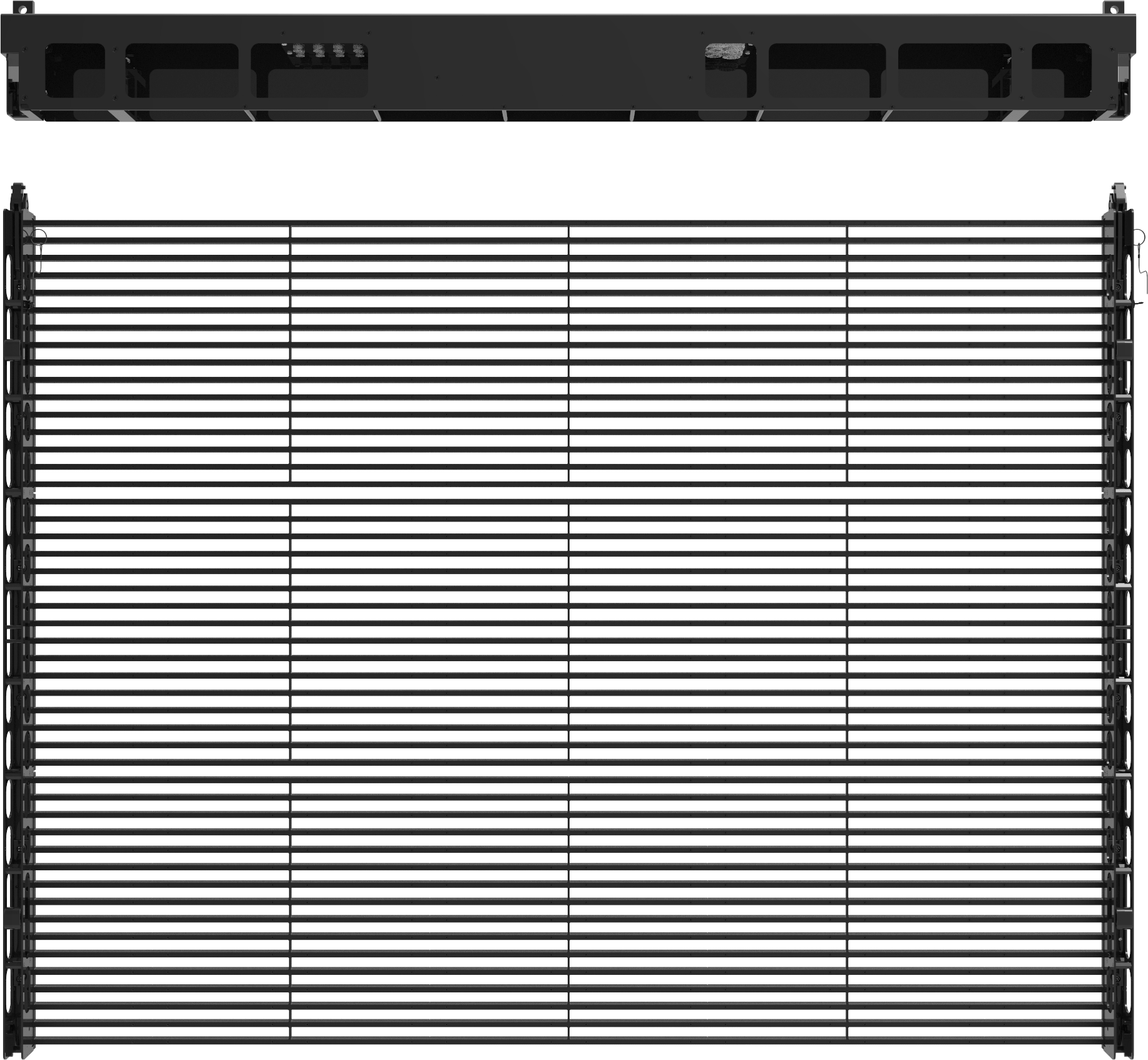

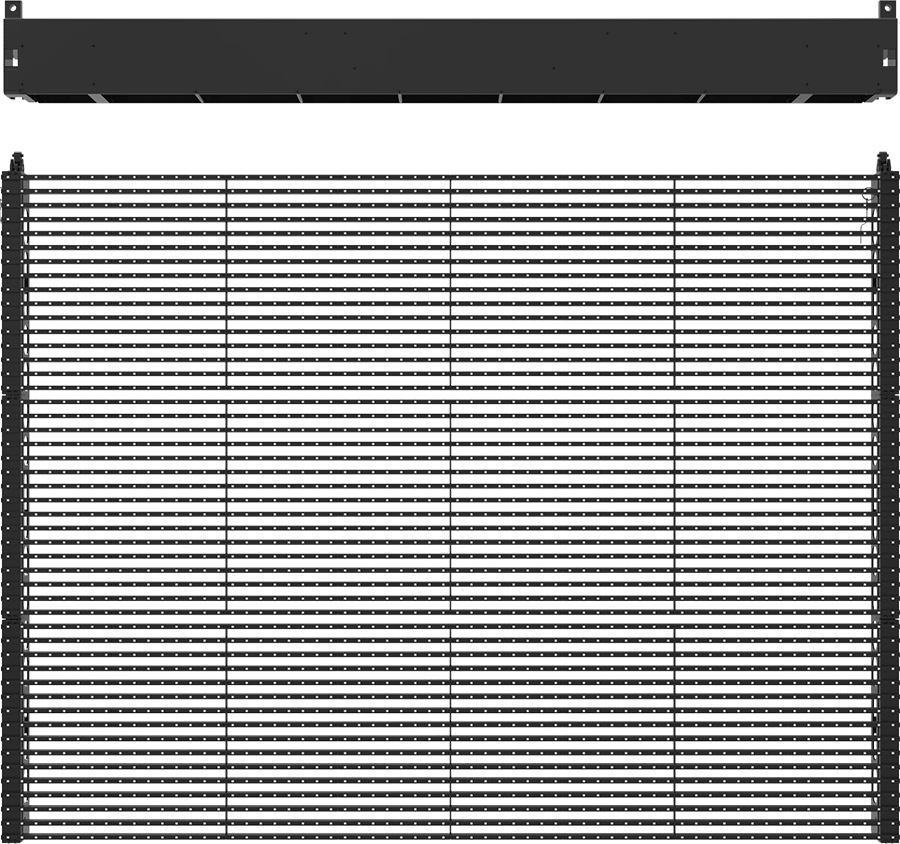

- Sheet section: 70.6″ wide x 52.8″ high (1792mm x 1338mm)

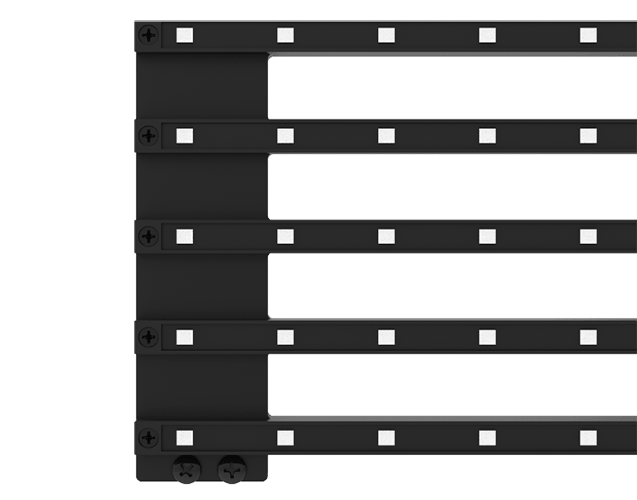

- Header: 70.6″ wide x 6.1″ high (1792mm x 155mm)
SURFACE FINISH
- Frame in standard brushed black anodized finish
WEIGHT
-
2.5lb/ft2 average (12.2kg/m2)
HEAT CONTROL
- Housing’s back surface area for passive heat dissipation
SURFACE FINISH
-
32°F to 131°F (0°C to 55°C)
INPUT VOLTAGE
- Header: 170-280VAC
- Video module: 12-48VDC
POWER
- 200W Maximum @ full white (per module)
- 600W Maximum @ full white (per sheet)
HEADER LIMIT
- Connect maximum 8 sheets per Header
PIXEL TYPE
- High brightness 3-in-1 LEDs by Nichia
PIXEL PITCH
-
1.1″ (28mm)
PIXEL COUNT
- 64px wide x 16px high = 1024px (per module)
- 64px wide x 48px high = 3072px (per screen section composed of 3 modules)
COLOR DEPTH
- 16-bit High Color per channel (65,536 shades per channel)
- 48-bit Deep Color per pixel (281 trillions shades per pixel)
VIEWING ANGLE
- Beam angle: 110°
- Field angle: 160°
TRANSPARENCY
- 78%
WHITE BALANCE
- 3500-9500K (Adjustable)
WHITE LUMINOSITY
- 4,200 nits
WARRANTY
- 5 years
ORIGIN
- Designed and made in North America
OPEN SPACE
78% open frame design for “out of thin air” media experience
Stack and layer tiles for deep and dynamic effects
BUILT TO LAST
Sturdy construction, for both indoor and outdoor use
Machined high-grade aluminum
MODULAR
Connect multiple C-THRU screens under one header
Create custom shapes or curves using specialized staging elements

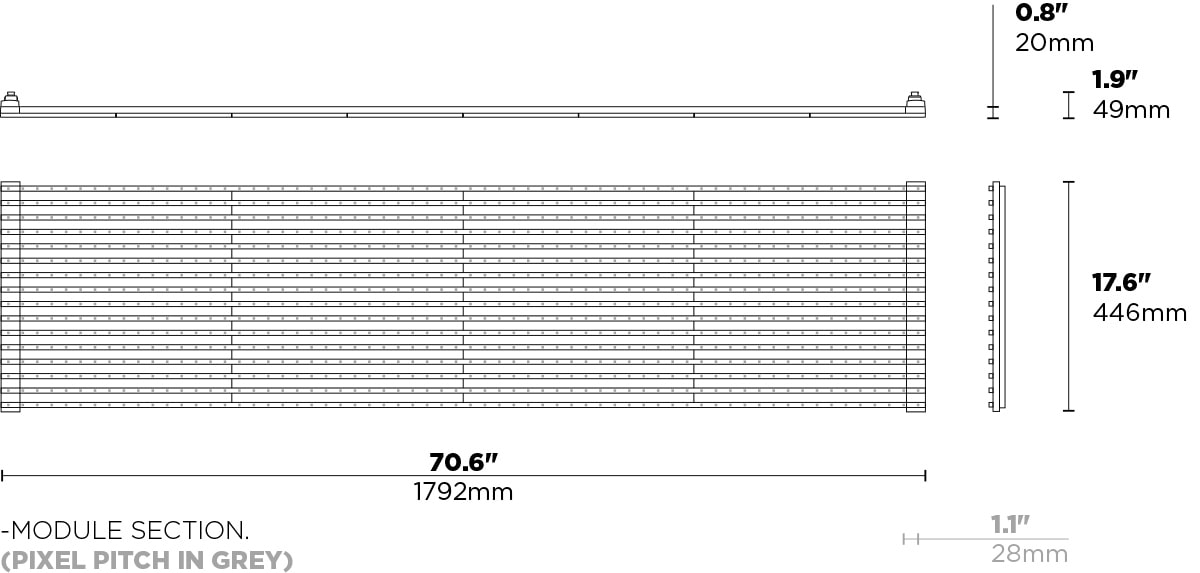

DIMENSIONS
DEEP COLOR
SACO’s proprietary V-STREAM high-speed, high-resolution video pixel control
16-bit data sampling for silky smooth gradients, with 65,536 shades per color.
