V-BRAIN 1600
The SACO V-BRAIN 1600 is an innovation in power and data delivery, designed to control SACO direct view products. The perfect hybrid between on-board power and remote power, designed for quick and easy installation.
Compact yet powerful, the SVB-1600 delivers up to 1600W and SACO’s proprietary V-STREAM data. The V-BRAIN 1600 is designed like the SACO fixtures, modular, stackable and slim. This model comes as a rackmount unit.

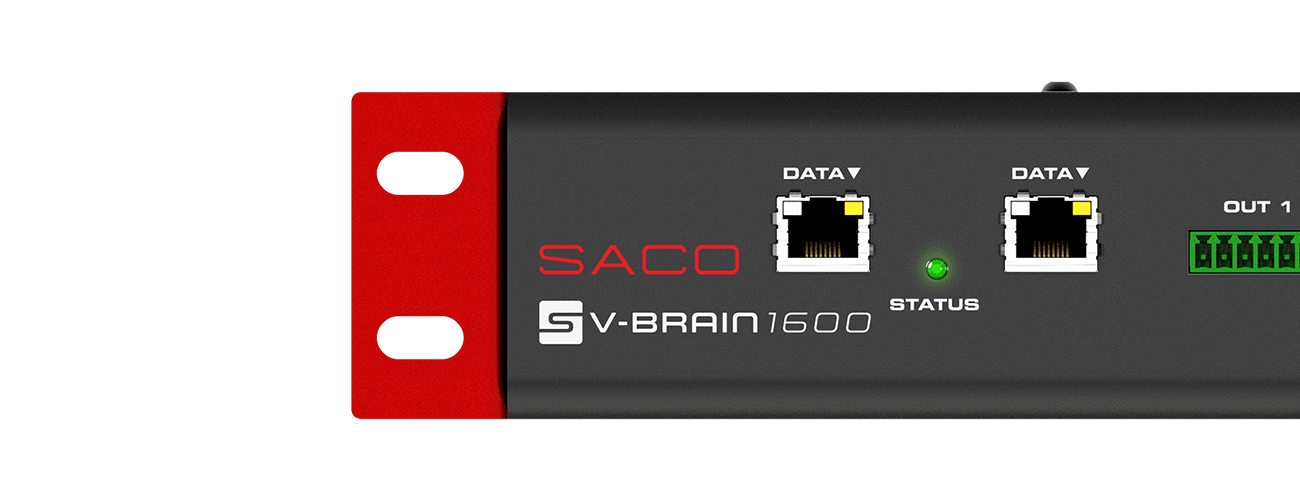

SACO V-BRAIN 1600
FEATURES
CONSTRUCTION
- Die-formed laser cut high grade 5052-H32 aluminum housing (0.080″/2mm)
- Stainless steel hardware
MOUNTING
- Mounts to a standard 19″ rack cabinet mounting frame
- Compact footprint uses a little less than 2U
- Die-formed laser cut cold rolled steel mounting brackets (0.125″/3mm)
SURFACE FINISH
- Durable polyester powder coating
WEIGHT
- 12.7lbs (5.8kg)
HEAT CONTROL
- Forced air cooling by DC fan
OPERATING TEMP
- -40°F to 86°F (-40°C to 30°C)
INPUT VOLTAGE
- 90-264VAC (47-63 Hz) / 12VDC (LPS)
INPUT CURRENT
- 15A @ 115VAC Typical, 8.5 A @ 230VAC Typical / 1.6A (LPS)
OUTPUT VOLTAGE
- 48VDC Typical (Min 47.5VDC, Max 54VDC)
OUTPUT CURRENT
- 33.5A Maximum
OUTPUT POWER
- 1608W Maximum

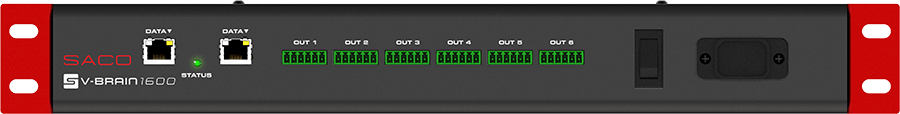

POWER INPUT
- Standard IEC C13 receptacle (front panel)
- Standard barrel jack panel mount receptable (back panel)
DATA INPUT
- Standard RJ45 receptacle
FIXTURE OUTPUT
- 6 x 6-pin terminal block ports
- Refer to basic wiring guide for general lead cables to daisy chain ratios
- Consult SACO for optimal system configuration on your project
DATA OUTPUT
- Standard RJ45 receptacle, for serial V-BRAIN data connections
VIDEO PROCESSORS
- Multiple SACO video processing options are available
- See accessories guide for options.
CERTIFICATION
- CE (as per IEC 62368-1)
- NRTL (as per CAN/CSA-C22 No. 62368-1:2014-12 / UL 62368-1:2014-12)
WARRANTY
- 5 years
ORIGIN
- Designed and made in North America
DEEP COLOUR
SACO’s proprietary V-STREAM high-speed, high-resolution video pixel control. Up to 16-bit data sampling for silky smooth dimming, with up to 65,536 shades per color.
BUILT TO LAST
Sturdy construction built for indoor conditions.
REMOTE CONTROL
Tethered power and data allows for slimmer fixtures and discreet integration. Feedback loop provides status information on system.

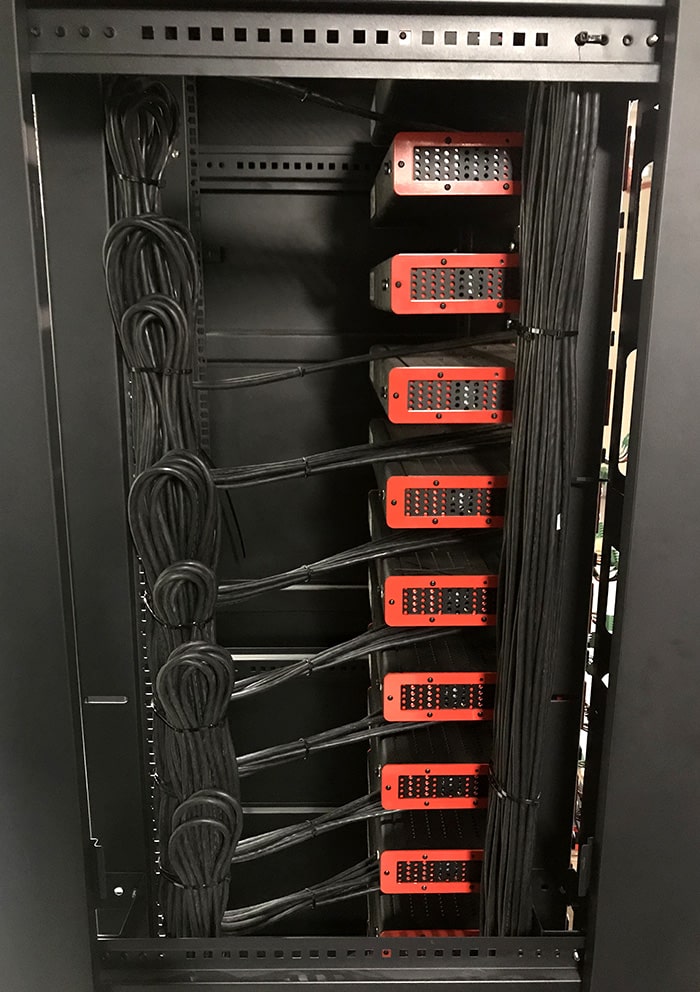

MODULAR
Expand the system by combining series of V-BRAINS and stacking fixtures to suit. No tools required, self-addressing quick connectivity.
Compact design takes less than 2U on a standard 19″ (48.3 cm) wide rackmount.
HEAT MANAGEMENT
Design ensures heat dissipation through both conduction and forced convection.

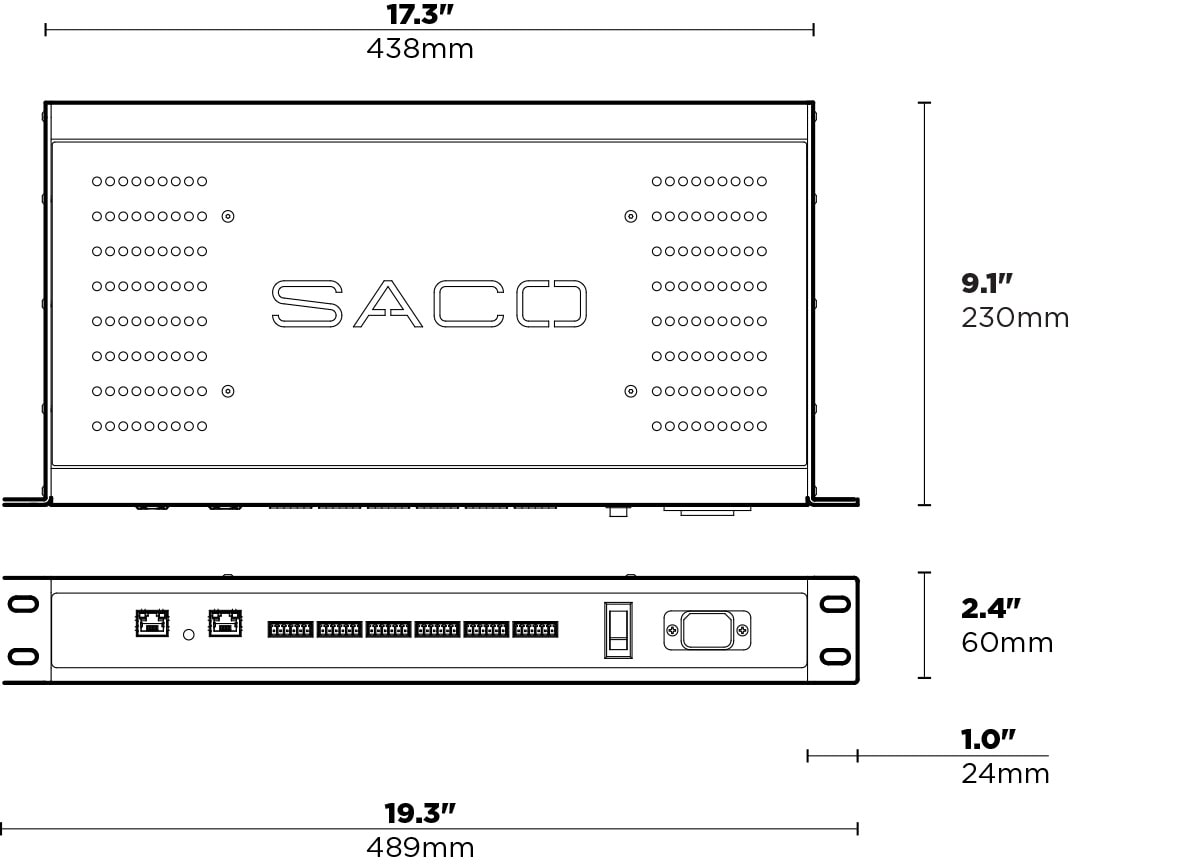

DIMENSIONS

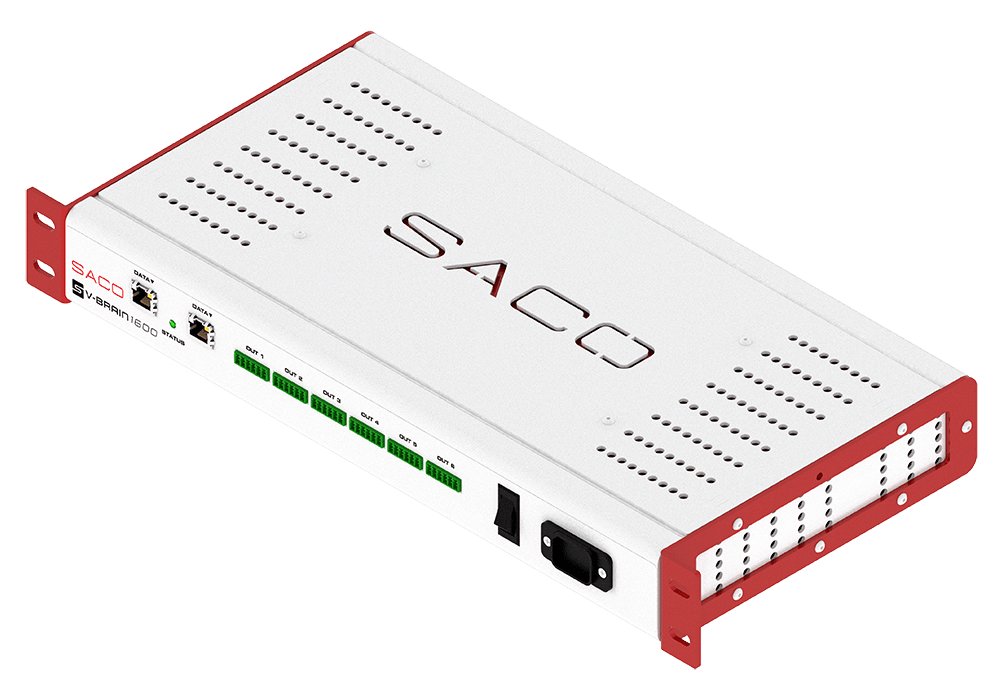

CUSTOM FINISH
YOU’RE IN CONTROL
POLISHED ALUMINIUM

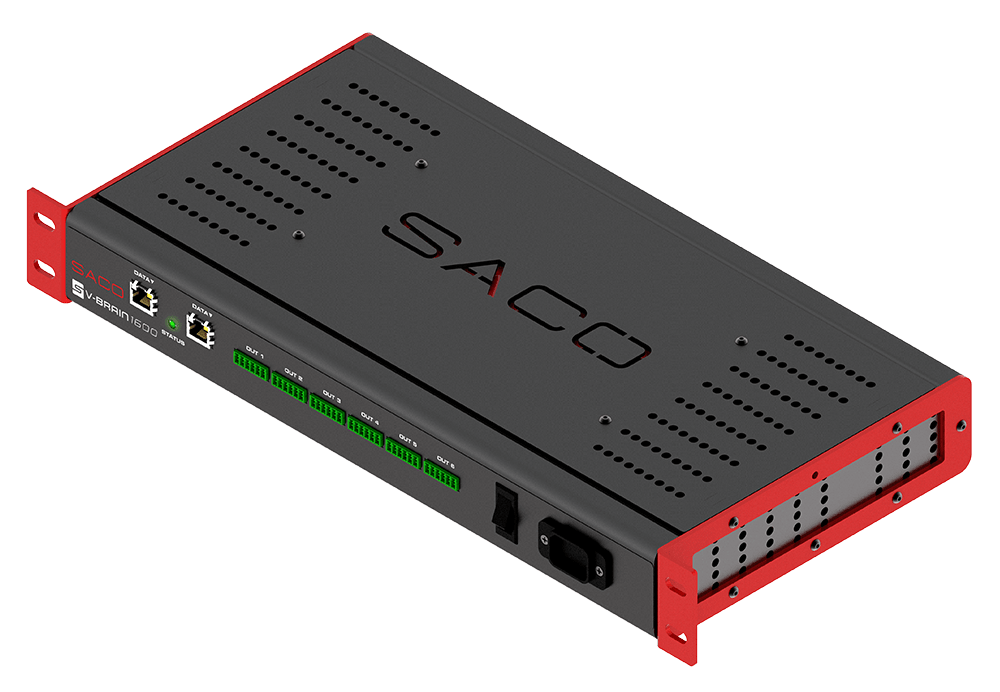

MATTE BLACK

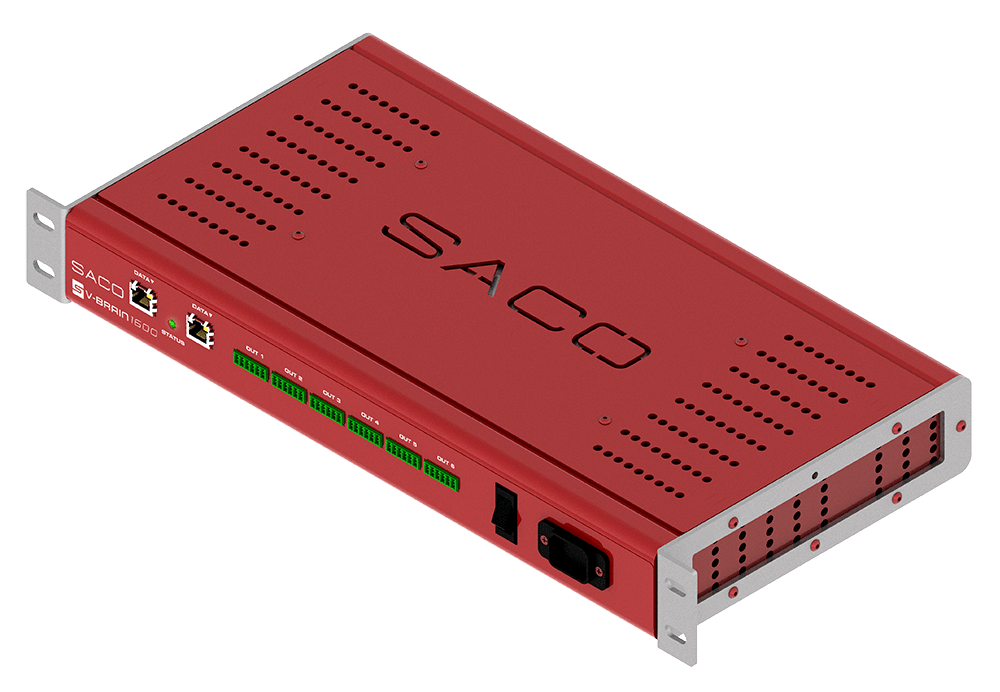

CUSTOM COLOR
