DATA EXTENDER

SACO’s Data Extender provides a compact and flexible solution for distributing SACO’s video control data to multi-branch, long range systems. With the option of either fiber optic or RJ45 data input, it provides three data outputs, including a fiber optic output option. RJ45 outputs can be directly connected to SACO V-BRAIN controllers or to another Data Extender to create additional downstream branches.

Based on our proprietary V-Stream communication protocol, the SACO Data Extender is fully integrated to SACO’s line of video displays and video-enabled SACO light fixtures.



DOWNLOADS

SPEC SHEET

SACO DATA EXTENDER PROJECT

MAISON MANUVIE – MONTREAL

VIEW PROJECT

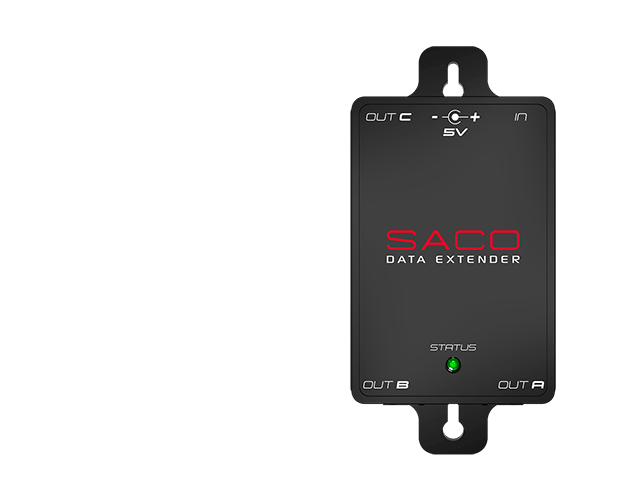

SACO DATA EXTENDER

FEATURES

CONSTRUCTION

  • Injection molded polymer housing (0.070 “/ 1.8 mm thickness)

MOUNTING

  • Mounts to a surface with #6 screws with appropriate anchors (not supplied)

SURFACE FINISH

  • Black

WEIGHT

  • 0.3lbs (0.1kg)

HEAT CONTROL

  • Convection passive air cooling

OPERATING TEMP

  • 32°F to 113°F (0°C to 45°C)

INPUT VOLTAGE

  • 5 VDC (power from LPS power supply)

INPUT CURRENT

  • 2 A Maximum

POWER

  • 10W Maximum

POWER ADAPTER

  • Standard 15 W universal LPS AC power supply adapter
  • Supplied adapter: CUI SMI18-5-V-PSR or equivalent (Saco #: LPS0000-00096)

POWER INPUT

  • Standard 5.5mm barrel receptacle (center positive)

DATA INPUT

  • 1 x Small Form Pluggable socket (SFP)
  • Supports 1 x Cat6 copper SFP adapter or 1 x LC duplex fiber optic SFP transceiver adapter

DATA OUTPUT

  • 2 x standard RJ45 receptacles (outputs A and B)
  • 1 x Small Form Pluggable socket (SFP) (output C)
  • Output C supports 1 x LC duplex fiber optic SFP transceiver adapter

HARDWARE

  • LED status indicator

OUTPUT A≠B

  • When a fiber input is used (fiber receiver configuration), 2 different V-Streams are presented on outputs A and B

OUTPUT A = B

  • When a copper input is used (data splitter configuration), the same V-Stream is presented on both outputs A and B

SFP ADAPTERS

  • Compatible with LC duplex optic fibre SFP transceivers
  • Compatible with CAT6 copper SFP adapters or better instead

WARRANTY

  • 5 years

ORIGIN

  • Designed and made in North America

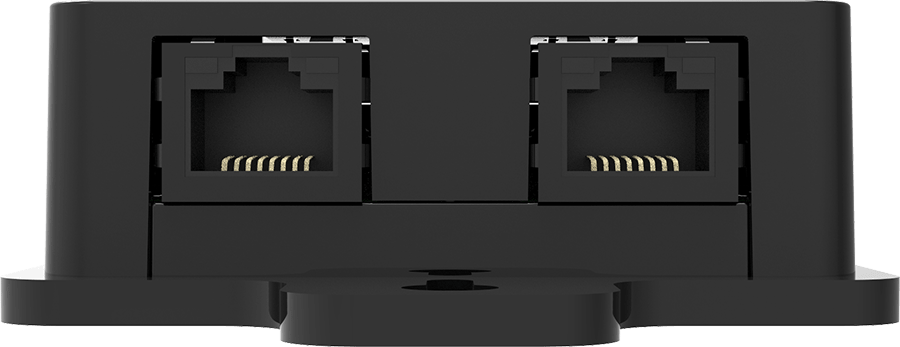

OUTPUT B – Network ready RJ45 receptable (10 / 100 Mbps)
OUTPUT A – Network ready RJ45 receptable (10 / 100 Mbps)

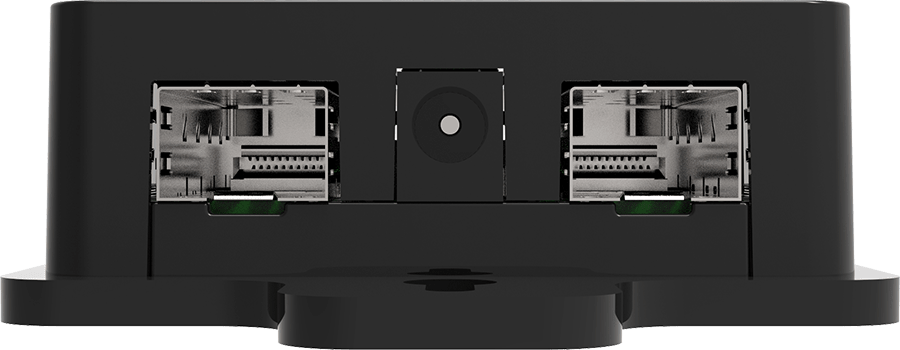

INPUT – Small Form Pluggable socket (SFP)
Power 5.5mm barrel jack (center positive)
OUTPUT C – Small Form Pluggable socket (SFP)

PLUG AND PLAY

Small but mighty offering long range solution

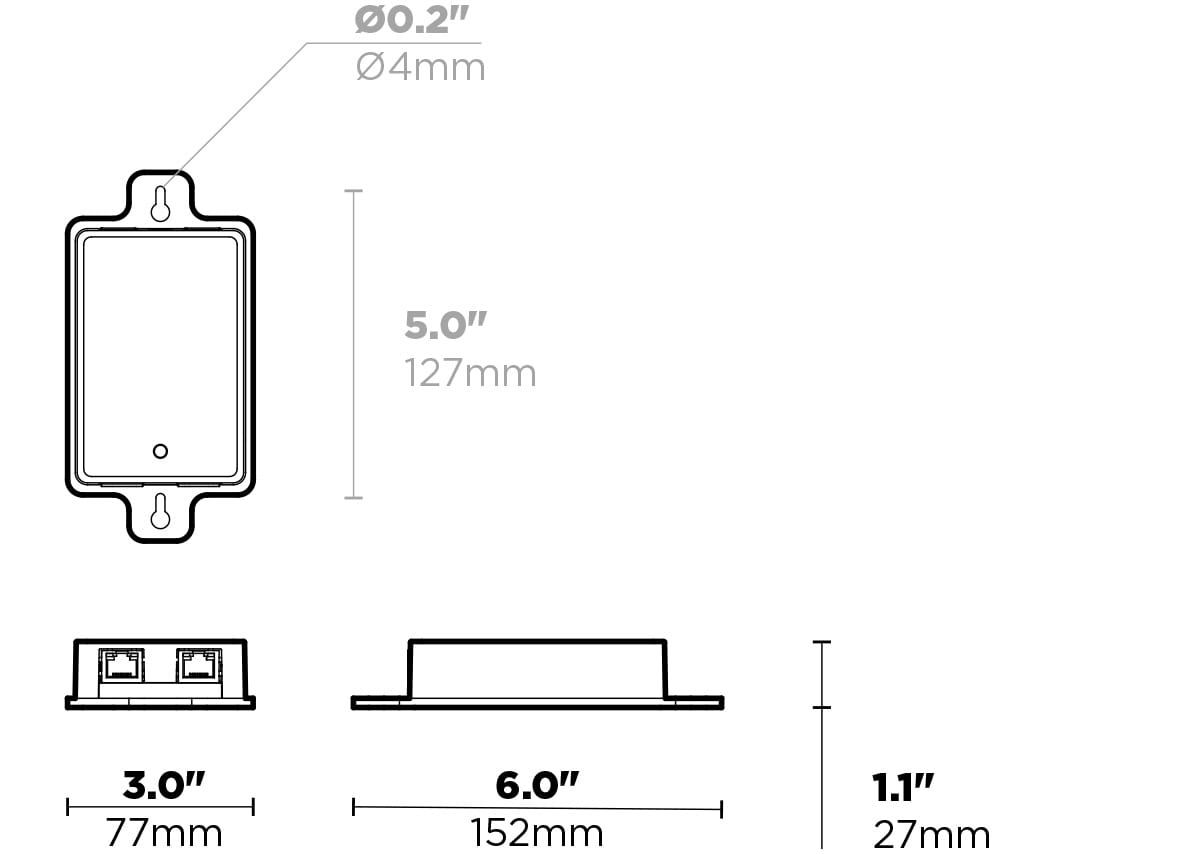

DIMENSIONS

GO THE DISTANCE

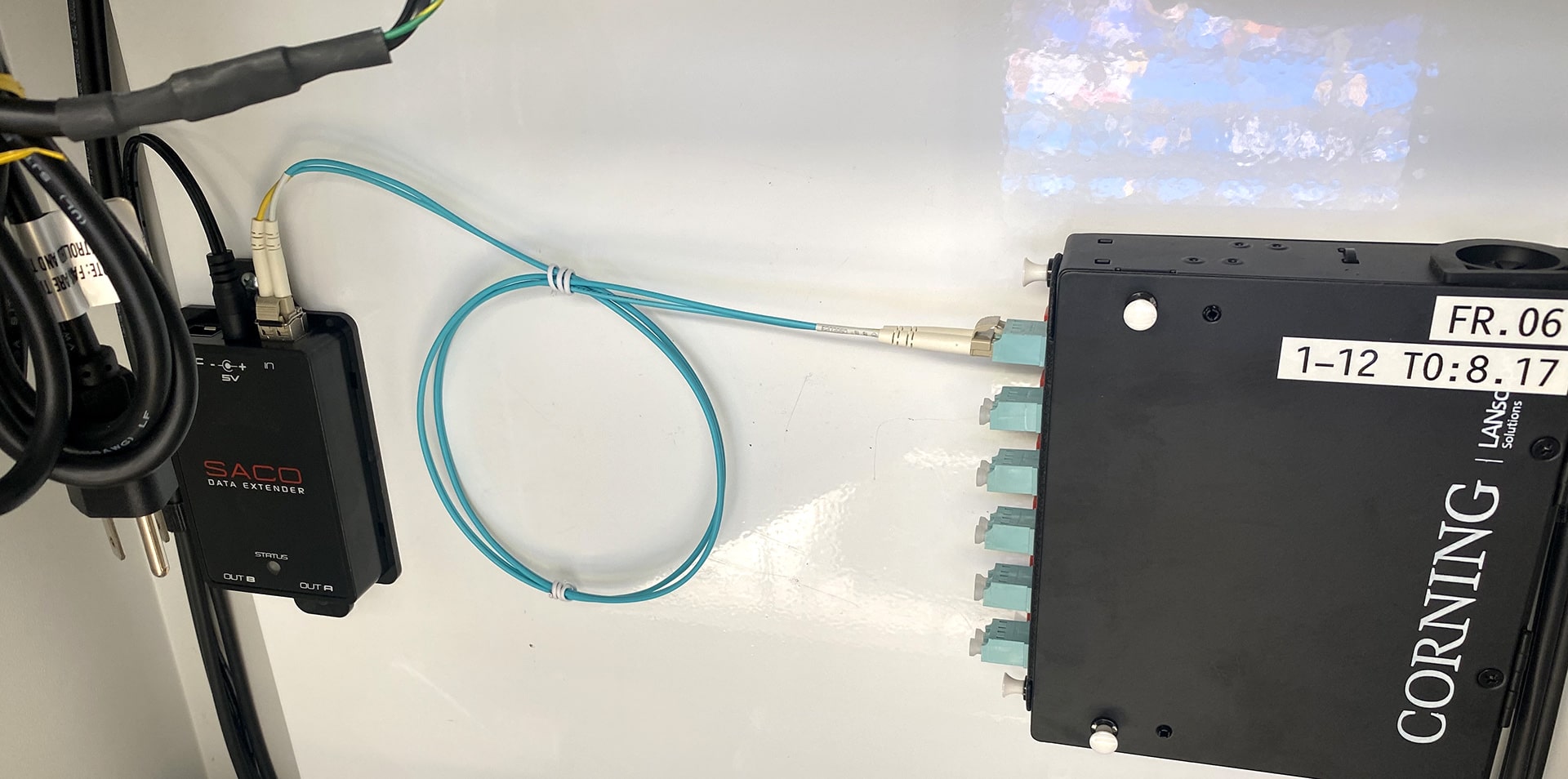

Data extender when hooked to SFP optic fiber transceiver
Data splitter when hooked to SFP cat6 copper adapter
