PICO PROCESSOR
The PICO is SACO’s simplified video processing solution, using state-of-the-art electronics. It’s designed to process and transmit high-speed video signals.
Based on SACO’s proprietary V-Stream communication protocol, the PICO is fully integrated to SACO’s line of video displays and video-enabled light fixtures.

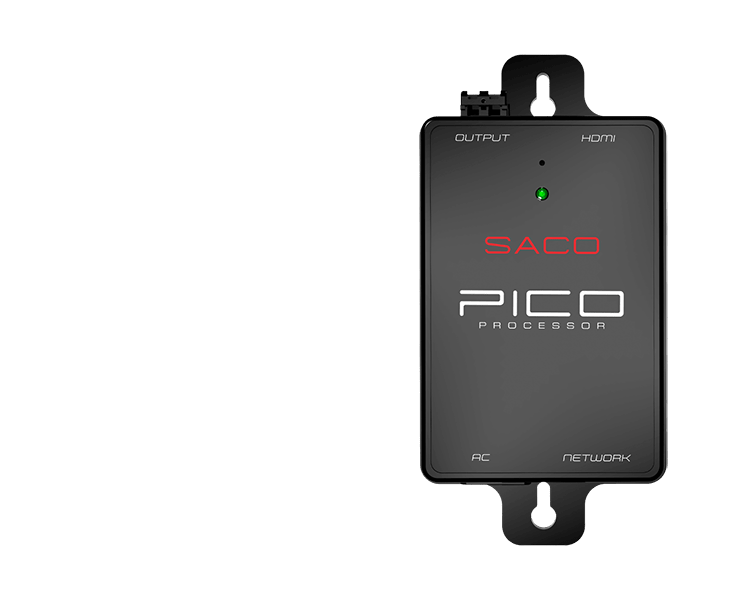

SACO PICO PROCESSOR
FEATURES
CONSTRUCTION
- Injection molded polymer housing (0.070 “/ 1.8 mm thickness)
MOUNTING
- Mounts to a surface with #6 screws with appropriate anchors (not supplied)
SURFACE FINISH
- Black
WEIGHT
- 0.3lbs (0.1kg)
HEAT CONTROL
- Convection passive air cooling
OPERATING TEMP
- 32°F to 113°F (0°C to 45°C)
INPUT VOLTAGE
- 85-264 VAC (47-63Hz)
INPUT CURRENT
- 0.2A Maximum
POWER
- 7W Maximum
POWER INPUT
- Standard IEC C7 receptacle
DATA INPUT
- 1 x standard HDMI 1.4 compliant receptacle
- 1 x standard network ready RJ45 receptacle (10/100 Mbps)
- Practical max resolution 1600 x 1200 pixels @ 60Hz
- Supports up to 1920 x 1080 pixels Full HD resolution @ 60Hz
DATA OUTPUT
- V-Stream data protocol with speeds up to 2.5 Gb/s
- 1 x Small Form Pluggable socket (SFP)
- Supports 1 x Cat6 copper SFP adapter or 1 x LC duplex fiber optic SFP transceiver adapter
HARDWARE
- LED status indicator
WYSIWYG
- No image resizing. No image enhancing. What you see is what you get.
- Output resolution corresponds to the input resolution as long as within data input specs
- 60Hz frame rate
- 225MHz max pixel clock
SACO DATA EXTENDER
- Compact and flexible solution for long run and multi-branch systems
- See specification guide for details
SFP ADAPTERS
- Compatible with LC duplex optic fibre SFP transceivers
- Compatible with CAT6 copper SFP adapters
WARRANTY
- 5 years
ORIGIN
- Designed and made in North America

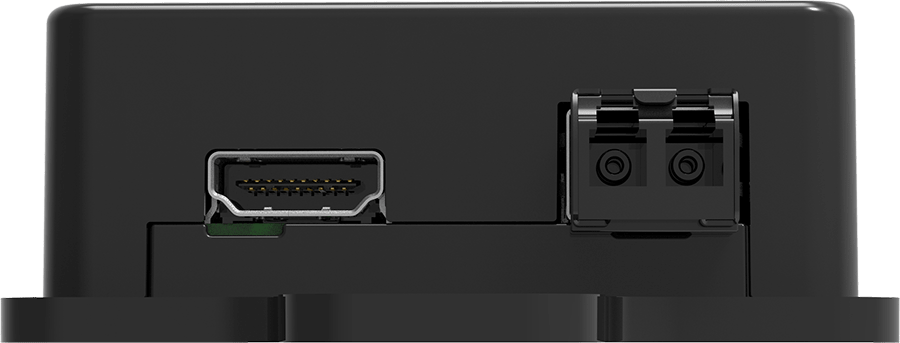

HDMI 1.4 COMPLIANT RECEPTACLE
SMALL FORM PLUGGABLE SOCKETS (SFP)

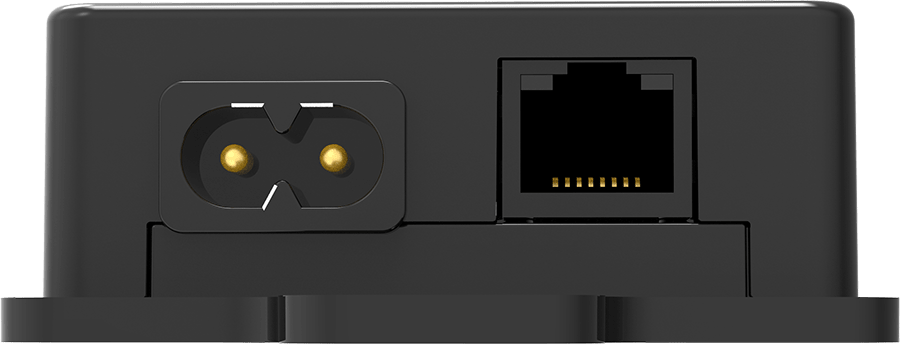

STANDARD IEC C7 RECEPTACLE
NETWORK READY RJ45 RECEPTACLE (10/100 Mbps)
HD QUALITY
SACO’s proprietary high-speed, high-resolution video pixel control. Supports Full HD resolution.
PLUG AND PLAY
Advanced video processing solution in a compact package. Stripped down to the essential functions for ease of use.
DIMENSIONS
DEEP COLOR
V-Stream quality data sampling for smooth gradients. Extensive gamut of over a billion colors per pixel.
