LED VIDEO SCREEN
S-LINE S12
SACO S-LINE is an innovative LED video screen system using state-of-the-art electronics in an easy to deploy, modular design. This tileable media system can be used in a multitude of applications, pre and post event entertainment, live event footage, advertising and messages. Varying pitches are available depending on desired resolution, and can even be combined for extra flexibility.
Based on SACO’s proprietary V-Stream communication protocol, the S-LINE is fully compatible with SACO’s C-THRU media touring solutions and SACO’s line of video processors and video-enabled light fixtures.
S-LINE S12
FEATURES
CONSTRUCTION

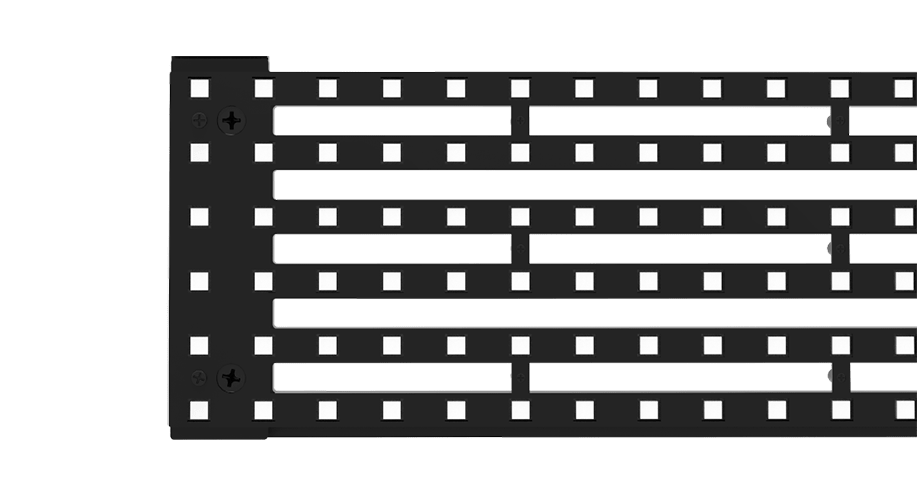

- Machined high grade 6061-T6 aluminum mounting frame and header
- Injected polymer LED carriers, contrast plate and housing
- Sturdy black oxide coated steel hardware
- Black silicone electronics potting (temp range -49°F to 392°F, -45°C to 200°C
- Front and rear access for serviceability
MOUNTING
- Proprietary magna-mount system for toolless installation of tiles on frames
- Built-in, self-aligning latch system for sturdy, quick and consistent frame joining
- Storage and transport carts can be lined up and joined for fast screen setup
DIMENSIONS
- Module dimensions: 17.6″ wide x 17.6″ high (448mm x 448mm)
SURFACE FINISH
- Frame in standard brushed black anodized finish
- Tiles faces in matte black polymer
WEIGHT
- 7.3lb (3.3kg) per tile
HEAT CONTROL
- Housing’s back surface area for passive heat dissipation
SURFACE FINISH
-
32°F to 131°F (0°C to 55°C)
INPUT VOLTAGE
-
100-240VAC
POWER
-
105W Maximum @ full white (per tile)
HARDWARE
- LED status indicators
- Remote turn off of status LEDs for showtime
PIXEL TYPE
- High brightness 3-in-1 LEDs by Nichia
PIXEL PITCH
-
0.5″ (12mm)
PIXEL COUNT
-
36px wide x 36px high = 1296px
COLOR DEPTH
- 16-bit High Color per channel (65,536 shades per channel)
- 48-bit Deep Color per pixel (281 trillions shades per pixel)
VIEWING ANGLE
- Beam angle: 110°
- Field angle: 160°
TRANSPARENCY
- 20%
WHITE BALANCE
- 3500-9500K (Adjustable)
WHITE LUMINOSITY
- 5,000 cd/m2 @ 6500K (5,000 nits)
WARRANTY
- 5 years
ORIGIN
- Designed and made in North America
BUILT TO LAST
Sturdy construction built for outdoor endurance.
Auto-addressing for easy field-servicing.
COMPACT SIZE
Lightweight injected polymer construction.
Tiles attach to shallow frames for slim profile video screen assembly.
MODULAR
Varying mounting frame sizes to cover most tile combinations.
Stack and connect frames of video tiles to suit.
Variable pixel pitch, varying transparency depending on desired resolution.

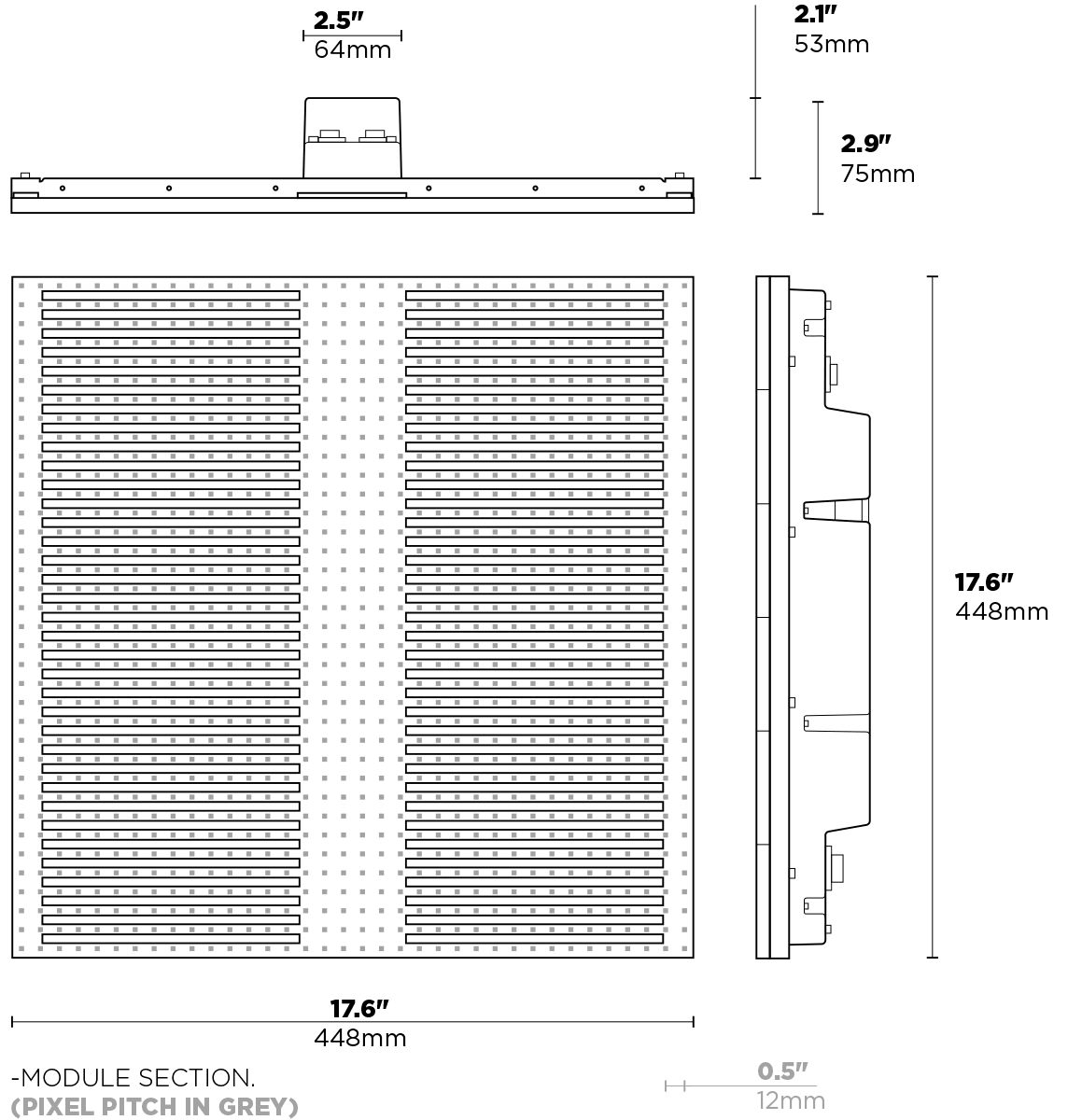

DIMENSIONS
DEEP COLOR
SACO’s proprietary V-STREAM high-speed, high-resolution video pixel control
16-bit data sampling for silky smooth gradients, with 65,536 shades per color.
